Sheet metal fabrication use variety methods through cutting, welding bending, punching and stamping processes to force the flat and thin metal into the desired shape. It is an ideal solution for metal components with specified wall thickness.
Whatever your requirement and demands, Xin Pin have capability enough to supply quick prototyping and volume production with very fast leadtime. Xin Pin is one of the china sheet metal fabrication manufacturers. Contact us today for a free sheet metal pressing quote.
Capability | Laser Cutting, Bending, Punching, Welding, Waterjet Cutting |
Raw Material Forms | Sheet |
Maximum Dimensions | 990.6mm x 1,193.8mm |
Minimum Dimensions | 6.35mm x 6.35mm |
Tolerance | Normally ±0.05mm, and it depends on part features such as bends, offsets, holes, and inserted hardware. |
Production Volume | From 1pcs to Prototype Medium Volume (5,000+ Parts) |
Surface Finishing | Brushing, Plating, Powder Coating, Abrasive Sand Blasting |
Lead Times Available | Shortest 5-7 Days Quoted on The Job by Job Basis Emergency Services Available (AOG) |
Industry | Aerospace Commercial Electronic Marine Military |
Metal Sheet Fabrication has a wide application. The fabrication method usually depends on the size of the part, the complexity of the design, and the finish type. but it is no more than the following process. As follows,
1. View Drawing
It is the first and the most important process to production.
2. Blanking The Material
Actually, there are many ways of blanking. We always choose the one suitable for your parts.
A. Blanking by the shearing machine. It used to cut out the width and length material.
B. Punching Blanking
C. NC Blanking

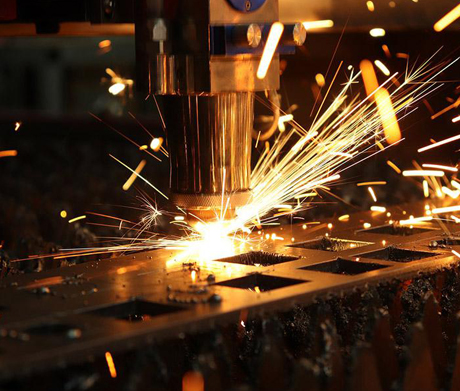

D. Laser Cutter Blanking
3. Flanging, riveting bending, welding as a requirement.
4. Surface Treatment
Generally has electroplating, Painting, Anodizing, etc.
5. Assembly
Assembly is the final step for the whole part. It should be taken care of on the surface without a scratch.
1. Economical Cost
Sheet metal parts can make large volumes of end parts at a lower cost per unit. It is one of the economical prototyping techniques.
2. Fast Leadtime
We utilize our year's experience with the advanced tools and technologies to machine high-quality parts on short timelines (Normally 7 to 14 days).
3. Complex Geometry
We can fabricate the complex structure through cutting, welding bending, punching, and stamping processes.
4. Remarkable Quality
Most sheet metal parts can be used directly to the end-use product after painting or plating.
5. Low Volume Production
From 1pcs to 100000+ pcs, it is a very effective way to fabricate your parts with our capability.
The thickness of sheet metal starts from 0.5mm and goes up to 6mm. The thin sheet metal is easy to form, while still providing great strength.
Email us an RFQ to info@xpmdel.com. We would like to receive both PDF and CAD models to review and download into our estimating software.
We provide sheet metal fabrication parts for a wide range of industries, including public transportation, commercial buildings, aviation and healthcare, and automotive.
ISO 9001 certified.
For the 3D drawing, we prefer to STEP, IGS, or X_T format.
The maximum supported file size is 20MB, For larger or multiple files
Please place it into one folder and compress it into a ZIP and sent it to info@xpmodel.com.
